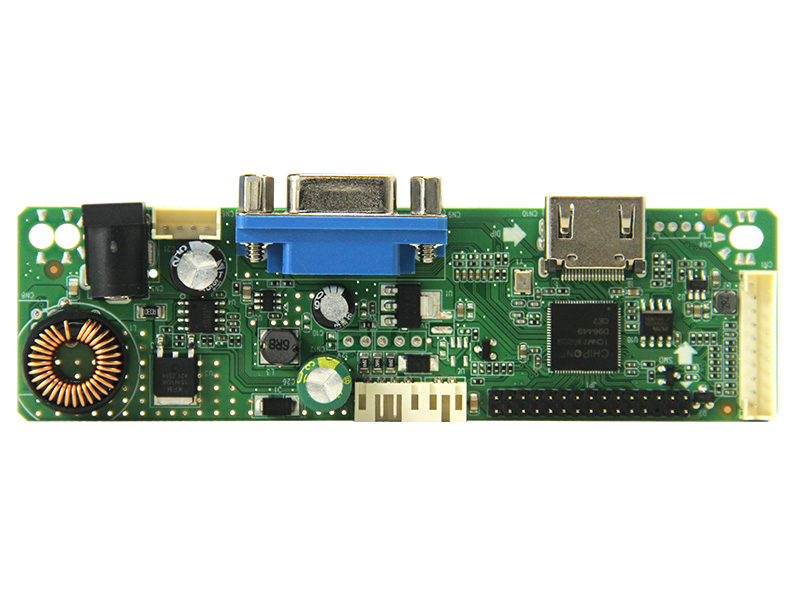

AOS-MH01P
產品介紹：
特性說明
MAIN CHIPSET 主芯片 |
ICNM7362 | ||
OSD LANGUAGE OSD 語言 | English,Russian,Deutsch,Français,Español,Italiano,Hollands,Finnish,Turkish, Polish,Portuguese,Brazilian Portuguese,繁體中文,簡體中文,日本語,한국어 | ||
PANEL 面板 | Panel Type | TFT LCD | |
Interface | 1/2Port LVDS 8bit | ||
VIDEO INPUT 視頻輸入 |
HDMI | 480i, 480p, 720p, 1080i, 1080p | |
Max Resolution | 1920*1080@144Hz | ||
HDMI Version | 2.0 | ||
VGA |
Max Resolution |
1920*1080@75HZ | |
POWER TO PANEL 驅屏電壓 (屏供電規格/電流最大值) |
5V@2000MA 12V@2000MA
5V瞬間電流不得大于3A | ||
Management 電源管理 |
Standby Power Consumption < 0.2W(Board Only) 待機功耗< 0.2W（僅主板） | ||
Button Types 按鍵類型 | Ground Key Interface 對地按鍵接口 | ||
Note: Licenses involved in specifications above are supposed to be obtained by customers themselves. 注意：以上規格涉及 License 部分需要客戶自己獲取。 | |||
電氣特性和要求
Symbol | Voltage Range | Ripple | Total current | MAX. current(mA)of Individual part | ||||||
MIN |
TYP |
MAX |
Voltage |
Mainboard |
AMP |
USB |
Back light |
Panel | ||
12V |
11 |
12 |
13 |
600 mVP-P |
3500mA |
300 |
2500 |
2000 | ||
Note: 1. The current of inverter and extension modules are not included in maximum current.
備注：1. Inverter 以及擴展模塊的電流不包含在最大電流中。 | ||||||||||

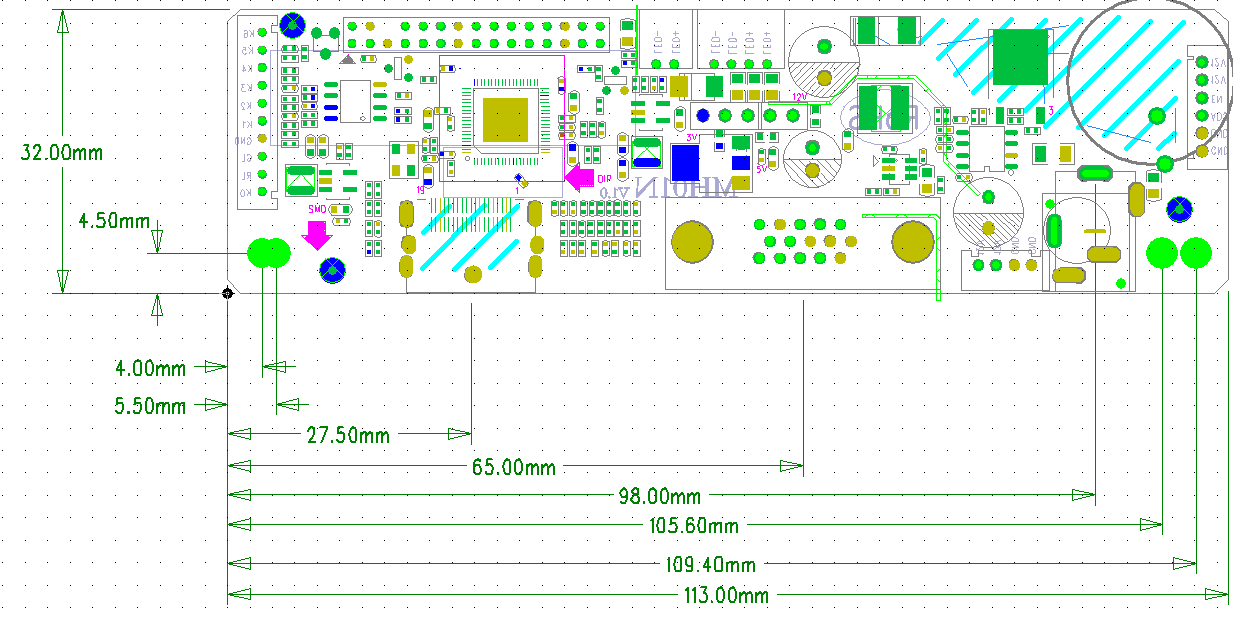

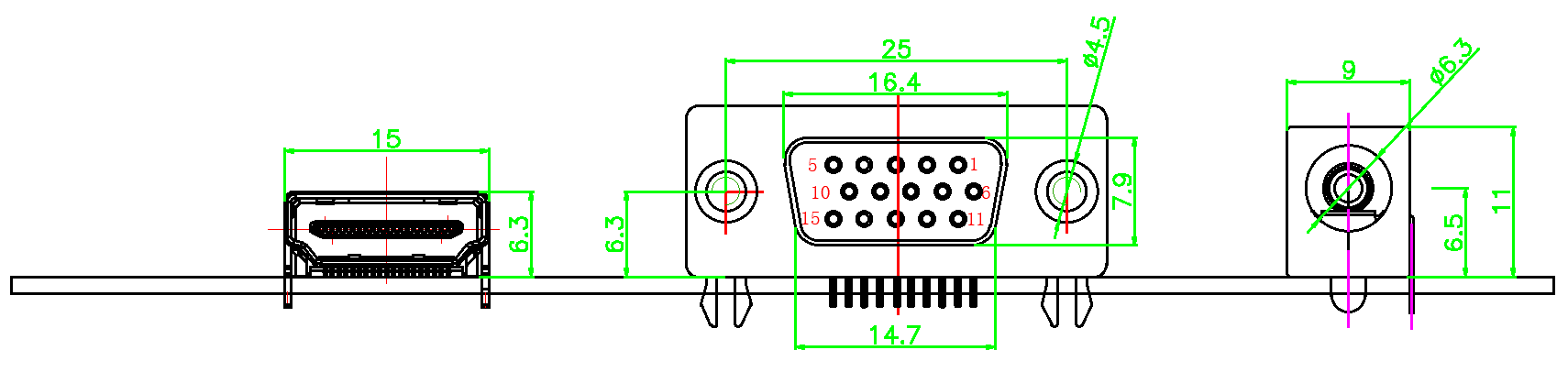

尺寸圖
