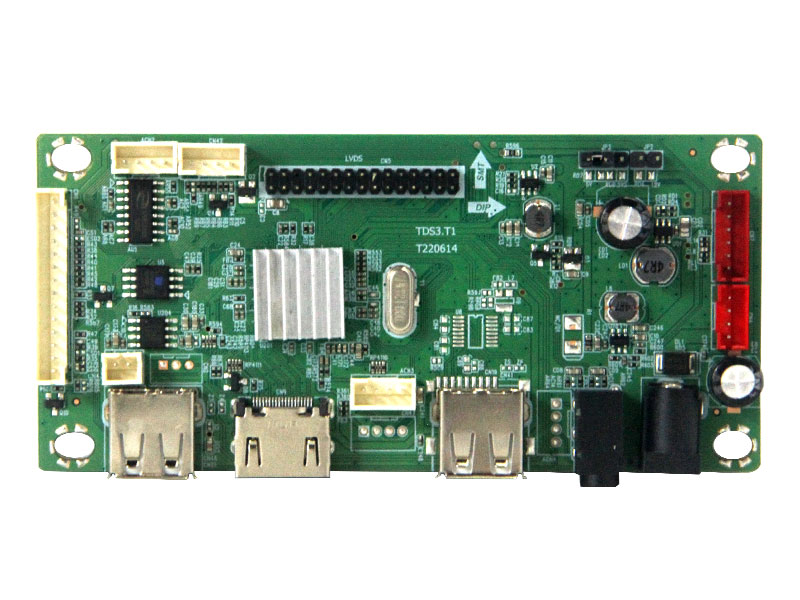

AOS-TDS3.T1
產品介紹：
規格參數
OSD LANGUAGE OSD 語言 | Southeast Asia | English, French, Spanish, greek, chinese, czech. (optional) | |
VIDEO INPUT 視頻輸入 | Panel Type | TFT LCD | |
Panel Size | - | ||
Interface | Single/Dual LVDS | ||
Max Resolution | 1920*1080 | ||
CVBS | Video System | PAL | |
Video level | 1.0 Vp-p±10% | ||
HDMI |
480i, 480p,576i,576p, 720p, 1080i, 1080p | ||
HDMI/HDCP Version | 1.4A/1.4 | ||
AUDIO INPUT 音頻輸入 |
CVBS |
L/R RCA input |
0.2 ~ 2.0 VRMS |
AUDIO OUTPUT 音頻輸出 | Frequency response | 100Hz-15KHz @±3dB(1KHz 0dB reference signal) | |
Max output power | 2×3W(4Ω) THD+N<10%@1KHz (Power Supply:12V,Audio Input:0.5VRMS) | ||
POWER TO PANEL 驅屏電壓 | 3.3V/5V/12V(±5%) | ||
USB FUNCTION USB 功能 | 軟件升級，多媒體播放 software upgrade, multimedia play | ||
按鍵類型 Button Types | 對地按鍵接口 Button Interface to the ground | ||
結構尺寸圖
