AOS-3576DL

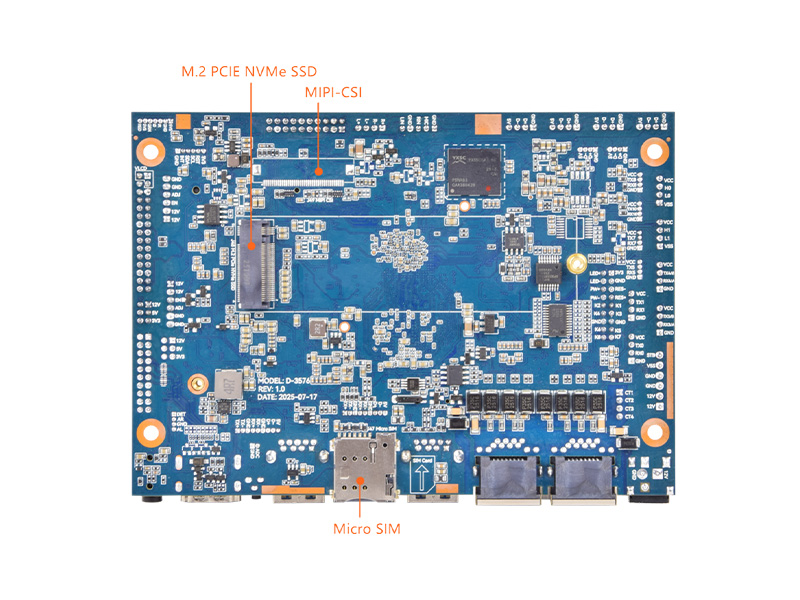

產品介紹：
1 規格清單 Specification List
AOS-3576DL的系統功能和接口特性如下表所示。D-3576’s system functions and interface features are shown in the following table.
功能&接口 Function & Interface | 詳細描述 Detailed Description |
CPU | RK3576 四核Cortex-A72+四核Cortex-A53，最高主頻2.2GHz RK3576 Quad-core Cortex-A72 and Quad-core Cortex-A53, up to 2.2GHz |
DDR | LPDDR5 3GB（4GB|8GB|16GB可選） LPDDR5 3GB (4GB|8GB|16GB optional) |
存儲 Storage | 默認標配32GB EMMC NAND芯片，可擴展至最大128GB The default comes with an 32GB EMMC NAND chip that can scale up to 128GB |
LVDS | 30針行業標準雙路LVDS接口，支持VESA/JEITA格式，最高支持1080P輸出 30-pin industry-standard dual LVDS supporting VESA/JEITA format up to 1080P output |
MIPI-DSI | 31-Pin FPC MIPI-DSI顯示接口，最高支持1920x1200輸出 31-Pin FPC MIPI-DSI display port supporting up to 1920x1200 |
HDMI輸出 HDMI Output | 1路HDMI 2.1標準顯示接口，最高支持4K輸出（HDMI和EDP復用，二選一） 1 HDMI 2.1 standard display interface supports up to 4K output (HDMI and EDP reuse, a choice) |
HDMI輸入 HDMI Input | HDMI 2.0/1.4b標準輸入接口，最高支持4K@60Hz HDMI 2.0/1.4b standard video input interface, up to 4K@60Hz |
EDP | 20針行業標準雙路EDP接口，支持1~4通道模式，最高支持4K@60Hz輸出（EDP和HDMI復用，二選一）20-pin industry-standard EDP supporting 1~4 lanes format up to 4K@60Hz output (EDP and HDMI reuse, a choice) |
耳機/麥克 HP/MIC | 支持美標4段耳麥一體3.5mm插座（左-右-地-麥克） Support CTIA 4-pole HP/MIC socket (Left-Right-GND-Mic) |
線路輸出 Line Output | 支持標準左右聲道線路輸出（排針接口+耳機接口） Support standard left and right channel line output (pin header + headphone jack) |
功放輸出 Amplifier output | 8歐·8W雙路音頻功放輸出 8 Ohm 8W Dual Audio Amplifier Output |
MIC輸入 MIC Input | 單端MIC輸入（排針接口） Single-End MIC input (pin header) |
線路輸入 Line Input | 支持標準左右聲道線路輸入（排針接口） Support standard left and right channel line input (pin header) |
USB接口 USB Interface | 2個橫插接口（USB Host 3.0x1和USB OTG 3.0x1），8個內置排針（USB Hub 2.0x6和USB Host 3.0x2） 2 horizontal connectors (USB Host 3.0x1 and USB OTG 3.0x1), 8 pin headers (USB Hub 2.0x6 and USB Host 3.0x2) |
串口 Serial Port | 2個TTL/RS-232/RS-485兼容內置，6個TTL/RS-232兼容內置 2 TTL/RS-232/RS-485 compatible, 6 TTL/RS-232 compatible |
TF卡 Micro SD Card | 自彈式TF卡插座，最高支持256GB TF卡 Self-elastic micro SD card socket, up to 256GB capacity |
MIPI攝像頭 MIPI Camera | 支持最高1600萬4-Lane MIPI CSI攝像頭（選配） Support MIPI CSI camera up to 16 million pixels (optional) |
攝像頭 Camera | 支持800萬的像素以內USB攝像頭 Support USB camera within 8 million pixels |
WIFI | 內置高性能WiFi6模塊，支持IEEE 802.11 a/b/g/n/ac/ax，默認2.4G/5G WiFi Built-in high performance WiFi6 module, support IEEE 802.11 a/b/g/n/ac/ax, dual-band is configured by default. |
藍牙 Bluetooth | 內置高性能BT模塊，支持V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0 Built-in high performance BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0 |
以太網口 Ethernet | 2路10/100/1000M自適應以太網RJ45網口+ 4芯POE供電排針 2 port 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
m-PCIE | 行業標準m-PCIE 4G/5G模塊接口+ Micro SIM卡座 Industry standard m-PCIE 4G/5G module interface + Micro SIM Card Socket |
背光控制 Backlight Control | 2路行業標準液晶屏背光控制接口（LVDS和EDP），支持背光開關和亮度調節 2 port Industry standard LCD backlight control header for LVDS & EDP, support for backlight switch and brightness adjustment |
紅外遙控 Infrared RC | 標準紅外接收排針接口 Standard infrared receiver pin header |
GPIO信號 GPIO Signals | 最高8路GPIO信號，可擴展GPIO按鍵和/或3.3V輸入/輸出 Up to 8-way GPIO signals for such as GPIO buttons and/or 3.3V digital input/output |
I2C總線 I2C Bus | I2C排針和FPC接口，可擴展I2C電容屏等 I2C pin header and FPC for I2C capacitive screen and etc |
CAN總線 CAN Bus | 2路CAN排針接口，可擴展CAN總線外設（選配） 2 CAN pin headers for CAN Bus peripherals (optional) |
M.2 PCIE NVME接口 M.2 PCIE NVME Port | 1路M.2 PCIE NVME SSD插座，支持M.2 NVME 2280的固態硬盤 1 Supports M.2 PCIE NVME SSDS, support for M.2 NVME 2280 SSDS |
ADC輸入 ADC Input | 1路ADC電壓采集信號 1-way ADC voltage acquisition signal |
實時時鐘 Real Time Clock | 超低功耗RTC電路（帶CR1220紐扣電池），并可支持定時開關機 Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
指示燈 LED Indicator | 紅色待機指示和綠色工作指示燈 Red LED indicator for standby and green LED indicator for running |
按鍵 Buttons | 燒錄鍵（RECOVERY）和電源鍵 Recovery mode button and power switch button |
電源輸入 DC Input | 支持9~15V寬電壓直流電源輸入 Supports 9~15V wide voltage DC power input |
環境要求 Ambient Requirement | 工作溫度-20°C ~ 70°C，工作濕度0%~95%（不結露） Working temperature -20°C ~ 70°C, working humidity 0%~95% (non-condensing) |
物理尺寸 Physical Size | 長*寬*高（135mm*95mm*13mm），PCB正面高度7.5mm Length*Width*Height (135mm*95mm*13mm), PCB top side height 7.5mm |
操作系統 Operating System | 推薦安卓14，選配Linux Buildroot/Debian 12/Ubuntu-22.04（待發布） Recommend android 14, optional Linux Buildroot / Debian 12 /Ubuntu 22.04 (be release) |
