AOS-3568
產品介紹：
功能&接口 Function & Interface | 詳細描述 Detailed Description |
CPU | RK3568 Cortex-A55四核，最高主頻2.0GHz RK3568 Cortex-A55 quad-core, up to 2.0GHz |
DDR | LPDDR4 2GB（4GB|8GB可選） LPDDR4 2GB (4GB|8GB optional) |
存儲 Storage | 默認標配16GB EMMC NAND芯片，可擴展至最大128GB The default comes with an 16GB EMMC NAND chip that can scale up to 128GB |
HDMI輸出 HDMI Output | 2個Micro HDMI 2.0顯示接口，最高支持4K@60FPS輸出 2 Micro HDMI 2.0 display interface supports up to 4K@60FPS output |
MIPI-DSI | 2路31-Pin FPC MIPI-DSI顯示接口，最高支持1920x1200輸出 2-way 31-Pin FPC MIPI-DSI display port supporting up to 1920x1200 |
MIPI攝像頭 MIPI CSI | 1路MIPI CSI接口，最高支持1600萬像素的MIPI攝像頭 1-way MIPI CSI interface, up to 16 megapixel MIPI camera support |
USB 2.0接口 USB 2.0 Interface | 2個USB3.0外置橫插接口（1個USB3.0和1個USB3.0-OTG）,2個內置USB2.0 host 2 USB horizontal connectors ( 1 USB3.0 and 1 USB3.0-OTG), 2 built-in USB2.0 host |
串口 Serial Port | 1個1.25mm 3pin TTL調試串口 1 1.25mm 3-pin built-in serial port |
TF卡 Micro SD Card | 自彈式TF卡插座，最高支持256GB TF卡 Self-elastic micro SD card socket, up to 256GB capacity |
WiFi | 內置高性能SDIO接口WiFi6模塊，支持IEEE 802.11 b/g/n/ax，默認單頻WiFi6 Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ax |
藍牙 Bluetooth | 內置高性能串口接口BT模塊，支持V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 |
以太網口 Ethernet | 2路10/100/1000M自適應以太網RJ45網口+4芯POE排針 2-way 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
風扇控制 Fan Control | 1路FAN接口 One FAN port |
GPIO接口 GPIO Interface | 40pin 2.54mm排針：支持I2S、CAN、I2Cx3、UARTx5、PWMx2、SPI、GPIO接口 40pin 2.54mm pin: Supports I2S, CAN, I2Cx3, UARTx5, PWMx2, SPI, GPIO interfaces |
PCIe 2.0 | 16pin PCIe 2.0 FPC接口可擴展PCIe外設 16pin PCIe 2.0 FPC port expands PCIe peripherals |
實時時鐘 Real Time Clock | 超低功耗RTC電路（外接CR1220紐扣電池），并可支持定時開關機 Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
指示燈 LED Indicator | 綠色工作指示燈 Blue LED indicator for running |
按鍵 Buttons | 燒錄鍵（RECOVERY），電源鍵和復位鍵 Recovery mode button, power switch button and reset button |
電源輸入 DC Input | 支持5V-2A電壓直流電源輸入（通過type-c座） Supports 5V-2A voltage DC power input (type-c) |
環境要求 Ambient Requirement | 工作溫度-20°C ~ 70°C，工作濕度0%~95%（不結露） Working temperature -20°C ~ 70°C, working humidity 0%~95% (non-condensing) |
物理尺寸 Physical Size | 長*寬*高（85mm*56mm*17mm），PCB正面高度16mm Length*Width*Height (85mm*56mm*17mm), PCB top side height 16mm |
操作系統 Operating System | 推薦安卓11，可選安卓12/13、Linux QT/Debian 11/Ubuntu-20.04、統信UOS和OpenHarmony 4.0 Recommended Android 11，optional Android 11/12, Linux Buildroot/Debian 11/Ubuntu-20.04, Tongxin UOS and OpenHarmony 4.0 |

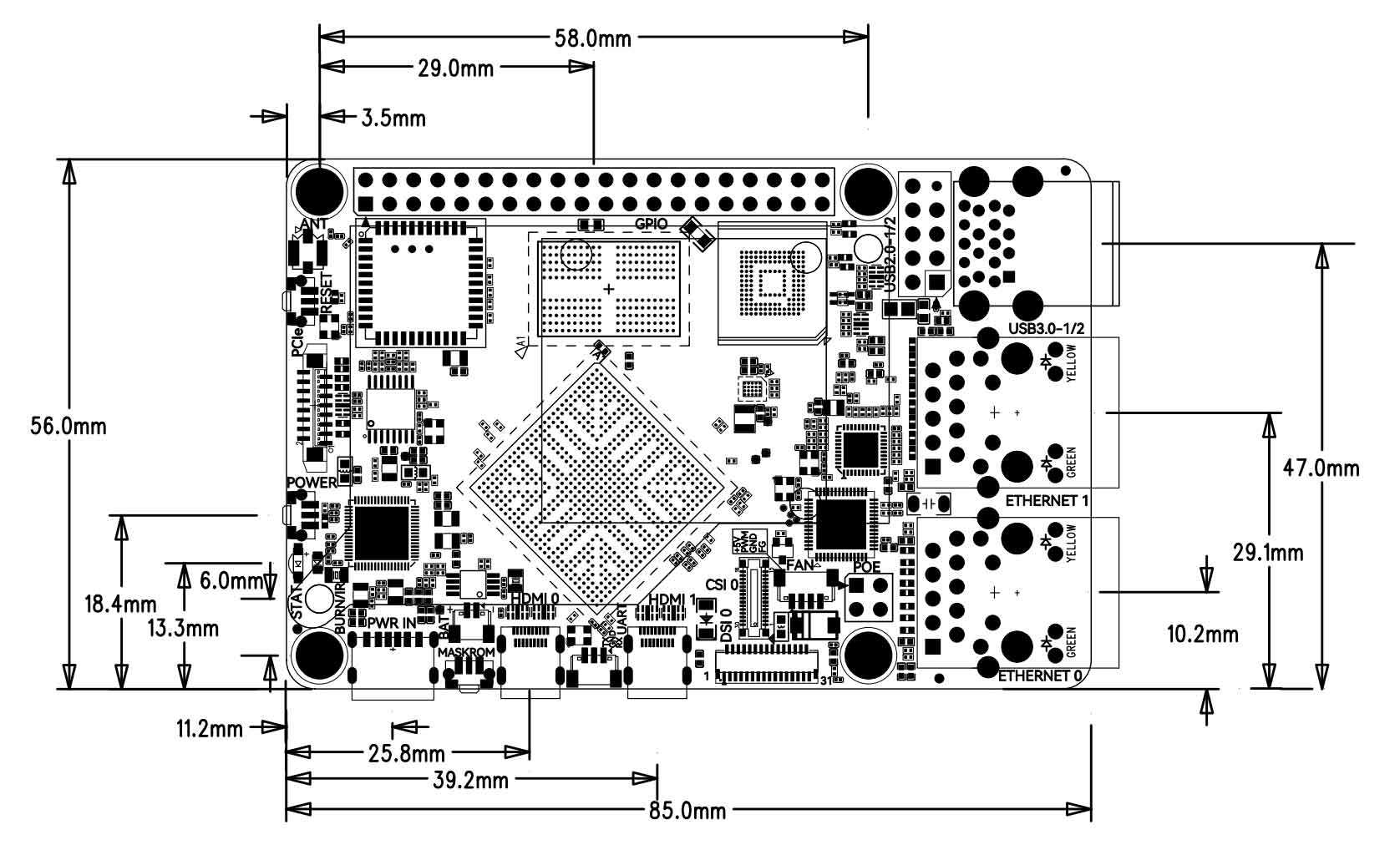

尺寸圖
