AOS-SOH5I45C
產(chǎn)品介紹：
Processor | CPU | Intel Core i3-2310M (dual core quad threads/2.1GHz/3MB L3 cache/HD3000/32nm/35W) |
Chipset | Intel® HM65 | |
BIOS | AMI 32Mbit, Support Diskless Boot, Wake on Lan, Power-on Boot, Watchdog, etc. | |
Memory | Capacity | 4GB SO-DIMM DDR3 1333 MHz memory , Max.8GB |
Storage | SATA Interface MINI PCIE | 2.5〞5400rpm 500G 1xMini PCIE |
Display | Graphics Output | CPU Integrated HD Graphics VGA+HDMI+DP single/dual display (synchronous/asynchronous display) 1 × VGA （Max. resolution: 1920×1080） 1 ×HDMI （Max. resolution: 1920x1080） 1 × DP （Max. resolution: 1920x1080） |
Ethernet | Lan WIFI | 1 × RTL8111E 10/100/1000M（RJ45 LAN） 1 x WIFI Module support 802.11b/g/n （Mini PCIE half card） |

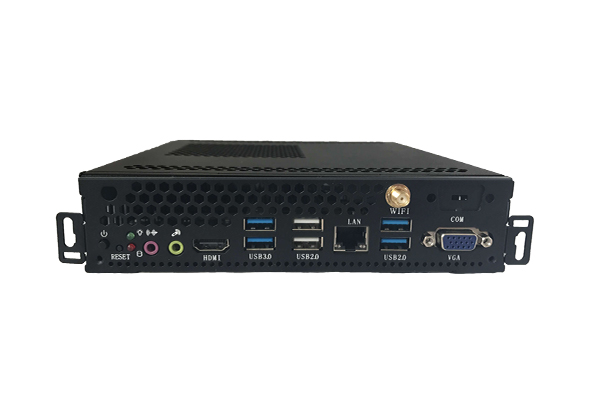

I/O | USB 3.0 USB 2.0 COM RESET Power button OPS interface LED light DC JACK Audio | 4x USB3.0 2× USB2.0 1 ×COM（RS232）optional 1 × Reset button 1 × power button 1 × OPS interface（80pin） 1 x Power led &1x HDD LED 1 × DC JACK 1 × LINE-OUT & MIC-IN, Integrated 6 audio channel with ALC662 chip |
Power | Input Rated Power | DC 12~19V 60W |
Watchdog | Output Interval | Interrupts, system restart L255 time interval |
Physical Parameter | Dimension | 180mm (L) x 195mm (W) x 42mm (H) |
Condition | Temperature Humidity | Work Temp.: 0°C ~50°C, Storage Temp.: -20~70°C 5%~90% No condensation |
Operating System | Vision | Windows xp/Windows 7 / windows8 / Linux |
Ordering Information
Sales Model Specification
AOS-SOH5C41SB Intel celeron 1000M 1.8GHz 4G Memory 128GB SSD
AOS-SOH5D41SB Intel Pentium B815 1.6GHz 4G Memory 128GB SSD
AOS-SOH5I41SB Intel Core i3-2310M 2.1GHz 4G Memory 128GB SSD
AOS-SOH5I41SB Intel Core i3-3110M 2.4GHz 4G Memory 128GB SSD
AOS-SOH5F41SB Intel Core i5-2520M 2.5GHz 4G Memory 128GB SSD
AOS-SOH5F41SB Intel Core i5-3210M 2.6GHz 4G Memory 128GB SSD
AOS-SOH5J41SB Intel Core i7-2620M 2.7GHz 4G Memory 128GB SSD
AOS-SOH5J41SB Intel Core i7-3520M 2.9GHz 4G Memory 128GB SSD
AOS-SOH5D45C Intel Pentium B950 2.1GHz 4G Memory 500G HDD
AOS-SOH5I45C Intel Core i3-2310M 2.1GHz 4G Memory 500G HDD
AOS-SOH5F45C Intel Core i5-2520M 2.5GHz 4G Memory 500G HDD
AOS-SOH5J45C Intel Core i7-2620M 2.7GHz 4G Memory 500G HDD
Applications
Apply to education, restautants, hotels, shipping malls, corporate meeting, government affairs, etc.
